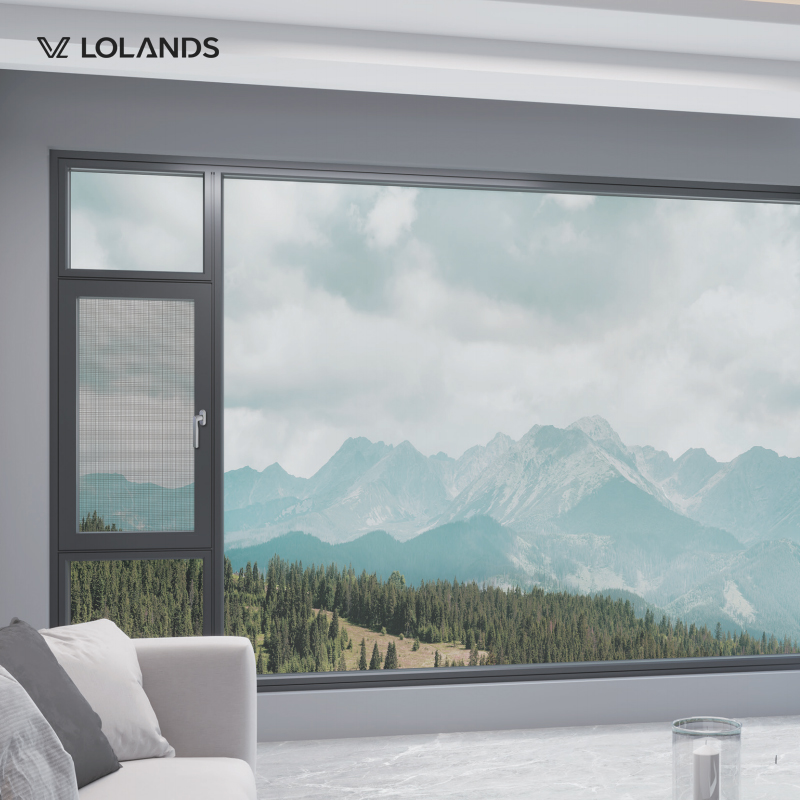

90 Series high-performance interior windows

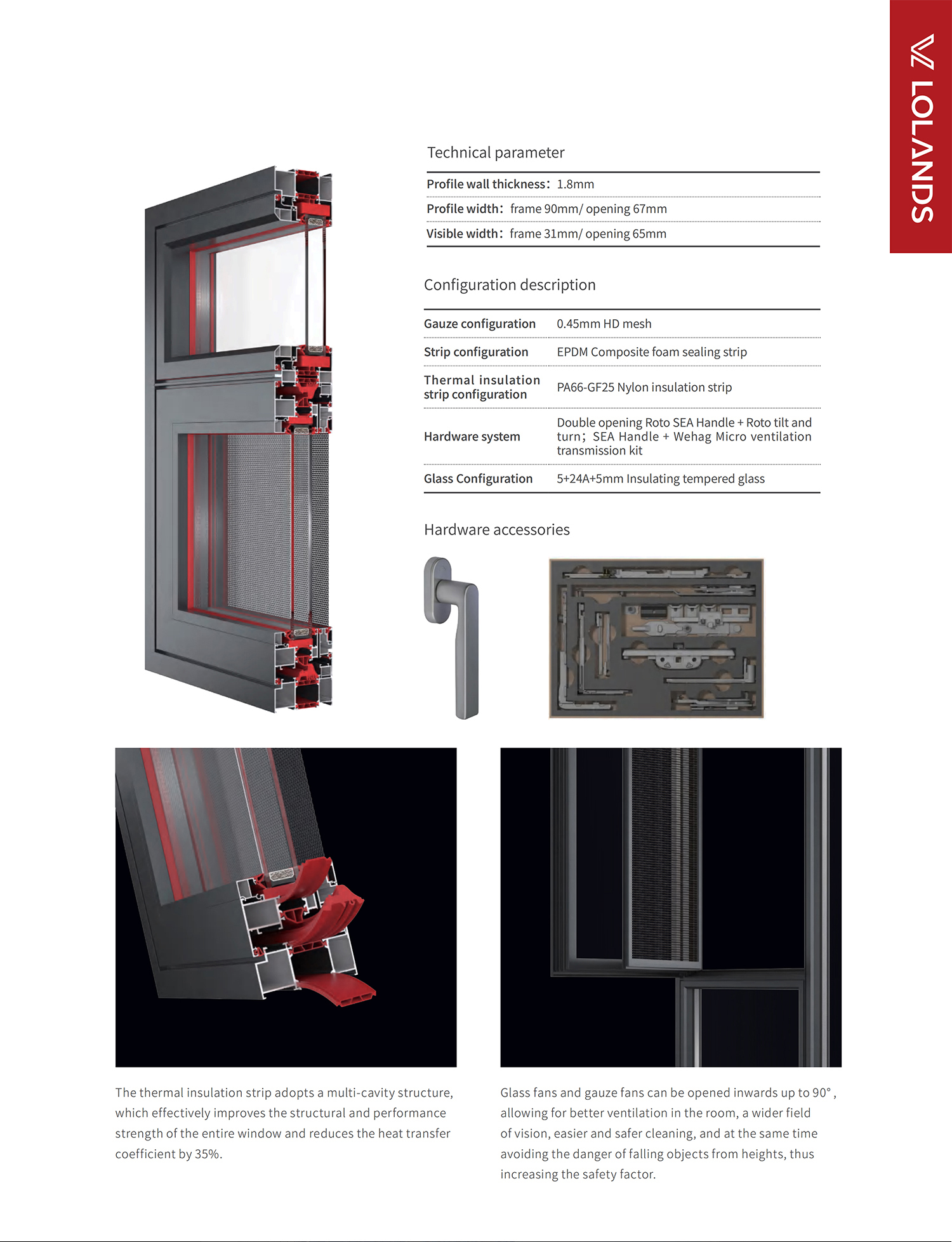

Technical parameters:

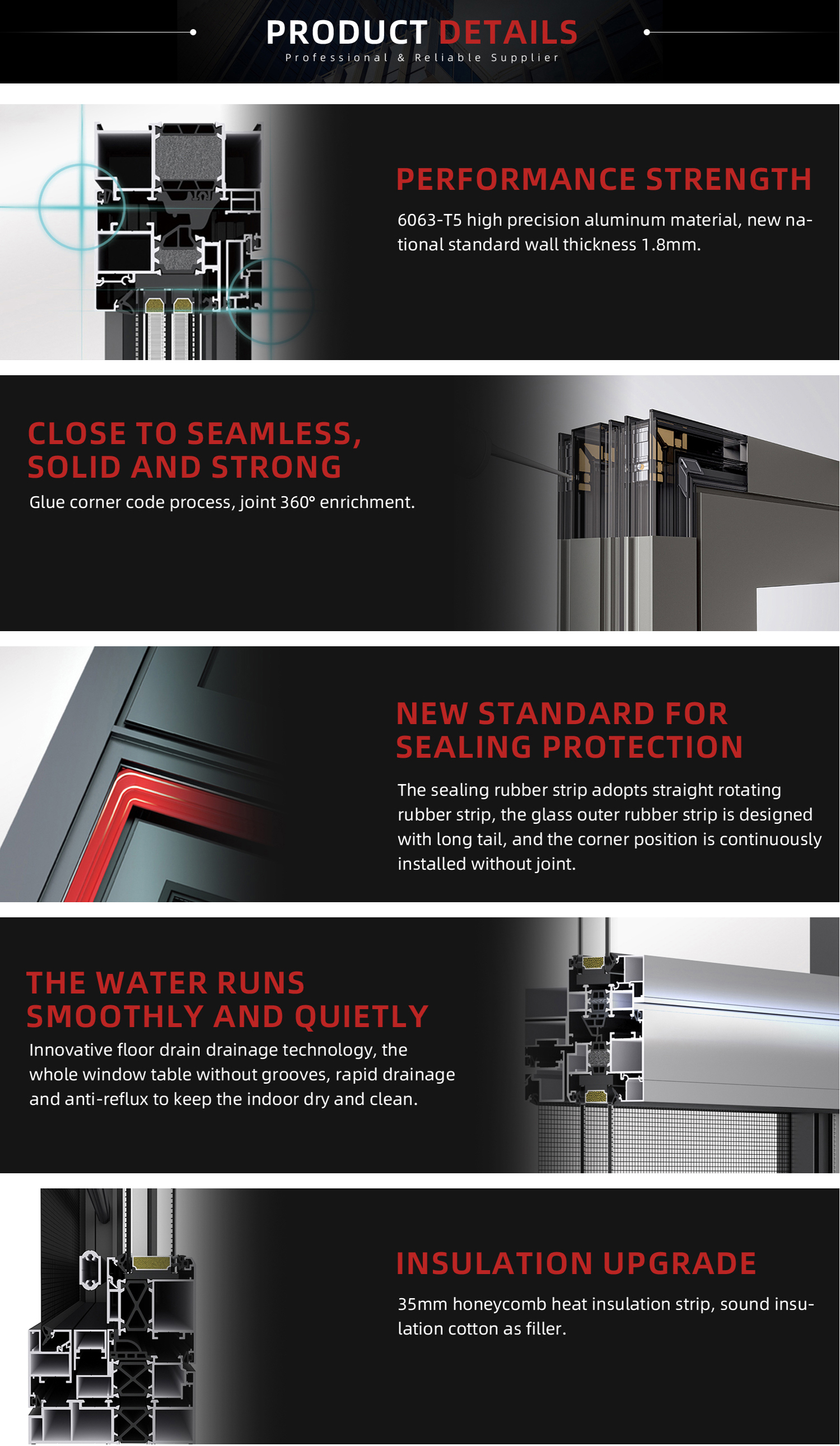

Profile wall thickness 1.8mm

Profile width:

frame 90mm/leaf 90mm

Visible width:

frame 31mm/leaf 65mm;

Mesh configuration:

0.45 high-definition mesh

Rubber strip configuration:

EPDM composite foam continuous bending sealing strip

Insulation strip configuration:

PA66-GF25 nylon insulation strip

Hardware system:

Double inner opening Noto (with base) SEA handle+Noto inner opening reverse drive kit; Micro ventilation Noto (with base) SEA handle+Vihagen micro ventilation transmission kit

Glass configuration:

5+24A+5mm hollow tempered glass

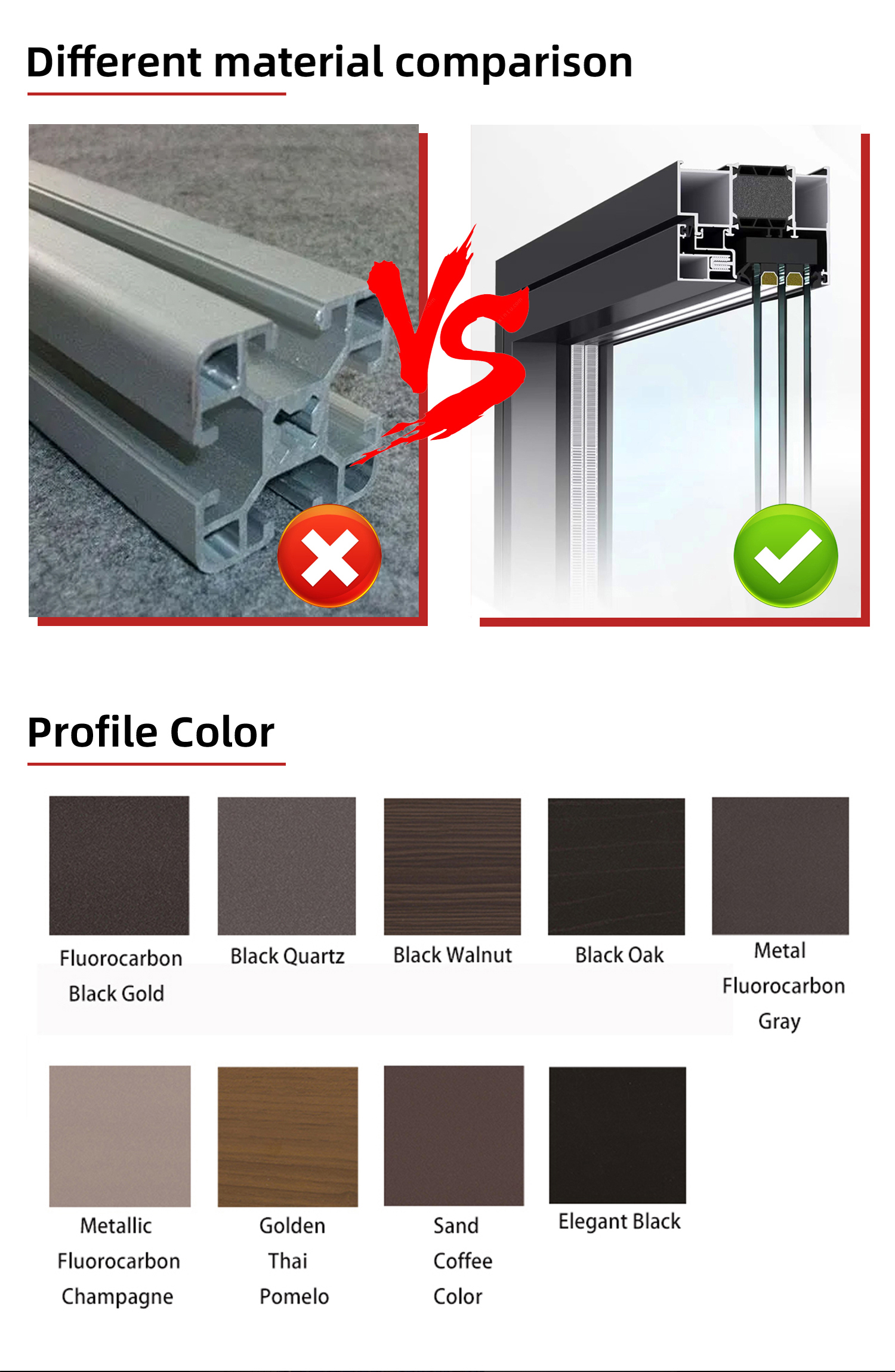

colour:

Fluorocarbon black gold.jpg

Galactic gray.jpg

Metal fluorocarbon ash.jpg

Metal fluorocarbon champagne.jpg

Sand coffee.jpg

Skin gray oak.jpg

Spade wood.jpg

Taxus chinensis.jpg
